产品系列：科研成像探测器

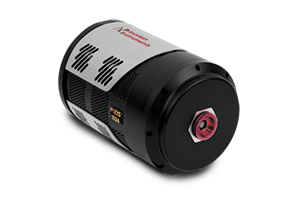

产品型号：PIXIS相机
产品品牌：普林斯顿
产品详情
PIXIS相机是普林斯顿科研相机的标准版本；深度半导体制冷、高信噪比，高稳定性依然在诠释着属于那一代的工匠精神和荣耀。虽然一直在创新，虽然培育了竞争对手，但是其依然坚守着从紫外到近红外的定量科学成像和光谱市场。
特征
- 宽波段响应300- 1050nm的灵敏度
- -90℃深度冷却
- 支持多种光谱和成像
- 支持灵活读出设计
技术优势

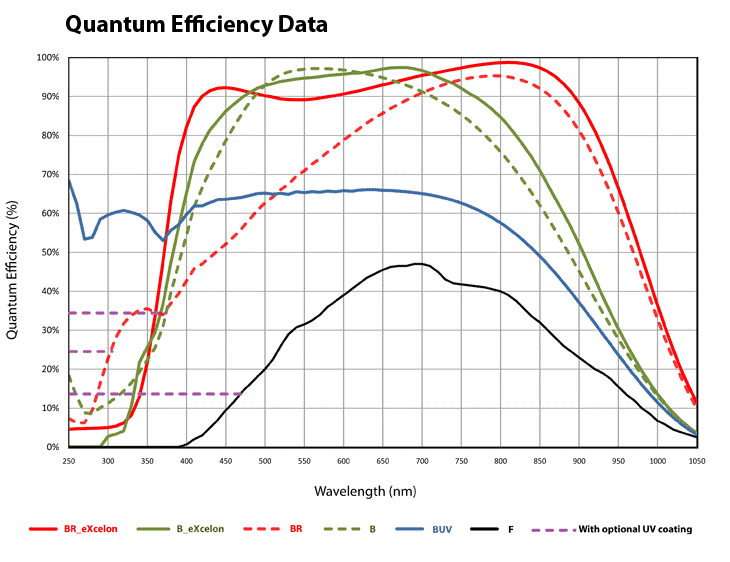

1. 宽范围的灵敏度
PIXIS提供大约120 – 1100 nm的最宽波长覆盖范围，能够用于各种广泛的应用。选定CCDS的量子效率（QE）大于95%，采用紫外线增强型CCD可以在紫外线中获得较高的量子效率，通过eXcelon™技术增强了灵敏度并减少了Etaloning效应。
2. 独特的真空技术
PIXIS可利用空气或液体取得-90℃的深冷温度，为长曝光时间提供了超低暗电流。单一输入窗口利用无需维护的操作提供了最大的灵敏度。
3. 利用eXcelon™提高灵敏度
eXcelon™技术提高了PIXIS的灵敏度，提供了更高的量子效率并减少了Etaloning效应。

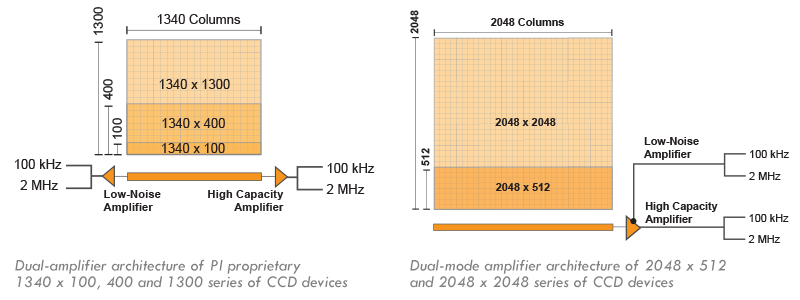

4. 终极的读出灵活性
双放大器读出设计优化了系统性能。高灵敏度放大器减少了弱信号的读出噪声，而高容量放大器则提供了更大的有效动态范围。
产品参数
探测器型号
| 型号 | 像素尺寸 | 制冷温度 | 芯片类型 |
| 1024 x 1024 | 13 X 13 μm | -90°C typical; -70°C guaranteed | BRX，BR，BX，B，BUV，F |
| 1340 x 13001340 x 1001340 x 400 | 20 x 20 μm | BRX，BR，BX，B，F | |
| 2048 x 20482048 x 512 | 13.5 X 13.5 μm | BRX，BR，BX，B，BUV，F | |
| 1024 x 256 | 26 x 26 μm | BR，E |
应用案例
1， Control of Ultrafast Non-Linear Interactions in Materials and Plasmonic Nanostructures
Researchers in the lab of Haim Suchowski investigate the non-linear interaction of plasmonic nanostructures with ultrashort laser pulses …Find out more
Eyal Bahar
University of Tel Aviv
2021
2，Improving the Quality of Handheld Raman Spectroscopy with Adaptive Focus Probes
Researchers from Germany have developed a novel set up that uses a liquid lens, alongside a LS-785 spectrometer and PIXIS camera, to dynamically adjust the focus on a handheld Raman spectroscopy system. The improvement of the quality of this system will allow for handheld Raman spectroscopy to be used for multiple biological and clinical applications…Find out more
Jürgen Popp and Iwan Schie
Optics Express
2020
3，Improving the Quality of Handheld Raman Spectroscopy with Adaptive Focus Probes
Researchers from Germany have developed a novel set up that uses a liquid lens, alongside a LS-785 spectrometer and PIXIS camera, to dynamically adjust the focus on a handheld Raman spectroscopy system. The improvement of the quality of this system will allow for handheld Raman spectroscopy to be used for multiple biological and clinical applications…Find out more
Jürgen Popp and Iwan Schie
Optics Express
2020
4，Characterizing Photonic Integrated Circuits with Imaging and Spectroscopy
Collaborators between University of Sydney, Jena and Braunschweig are developing complex photonic integrated circuits using modular design. They have created a plasmonic device that rotates the polarization of an IR beam via incorporated nanofocusing elements…Find out more
C. Martijn de Sterke
Nature Communications
2020
5， Using Emission Spectroscopy to Understand Laser Generated Plasma Filaments
Researchers from the State Key Laboratory of High FIeld Laser Physics investigated the interaction of laser filaments with strong electric fields and optical spectroscopy. This allows them to observe spectral features of plasma ions in high resolution…Find out more
Ruxin Li
AIP Advances
2020
